Our motorised monitor Agelasto DN50 and its equipment
The Agelasto DN50 monitor is the latest of our STACS-compatible monitor, specially designed for fire-fighting vehicules, offering performance up to 2500 lpm and can be equipped with a diffuser or a water-foam branchpipe. The compact design of this monitor is ideal for firefighting vehicules. Indeed, it can be installed on a bumper with horizontal movment adjustement range of 180° or 360° for roof-mounted installation.
The Agelasto DN50 is available with differents inlet couplings, including our exclusive system « QUICK CONNECT » allowing fast, reliable installation and connection.
Discover all these options in our catalogue.
We have recently extended our range of foam equipments compatible Agelasto DN50, using our « POWER FOAM » system.
First of all, what is the Power Foam system ? Patented by POK, the POWER FOAM branchpipe have an exclusive design with a compact size called ULTRA SHORT. The patented design of this branchpipe means that, in a very compact format, it has the same range and expansion capacity as a standard-size branchpipe. The small size of the AGELASTO DN50, combined with that of the POWER FOAM, makes it ideal for use on an firefighting vehicle. More, by its reduced weight, the POWER FOAM branchpipe relieves pressure on motorised monitor motor and make it easier to store thanks to its compact size.
These ulta-shorts branchpipes in aluminium alloy have been developed to extend the range of foam equipments for the Agelasto DN50, and fits perfectly into its compact format. These new Power Foam equipments, provide excellents hydraulics performances (up to 2500 lpm), with a compact format, while maintaining excellent spray range.

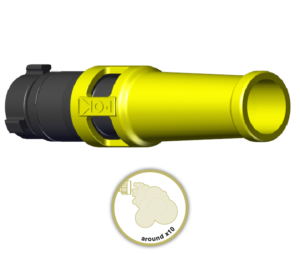

Ultra short water-foam branchpipes
– Anodised aluminium alloy with yellow polyester coating
– Without self-eduction
– «POWER FOAM» water-foam branchpipes range
– Unrivalled foam expansion and range
Our foam heads have an innovative locking system for fast, efficient connection and disconnection of the diffusers.
These equipments fit our diffusers DN50 (see below).
Low expansion foam heads
– Anodised aluminium alloy with yellow polyester coating
– Locking swivel ring
– Reference 49540

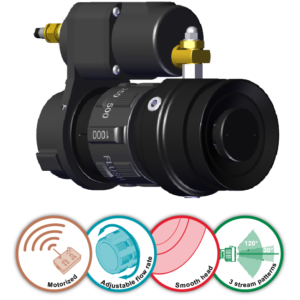

DN50 Diffuser, motorised spray pattern and manual flow rate adjustment
– Aluminium alloy
– Flow up to 1000 l/min and flush
– Version with a position sensor for adjusting the jet pattern is available
– Compatible with the foam heads references 49540 and 09297

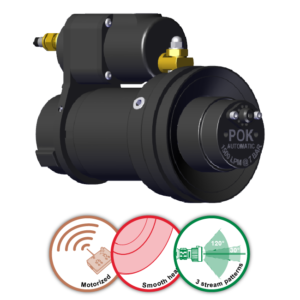

Automatic motorised diffusers
– Aluminium alloy
– Flow from 500 to 2500 l/min (depending on model)
– Straight spray, flashover and wide angle spray
– Compatible with the foam heads references 49537
See all our models in our catalogue.
